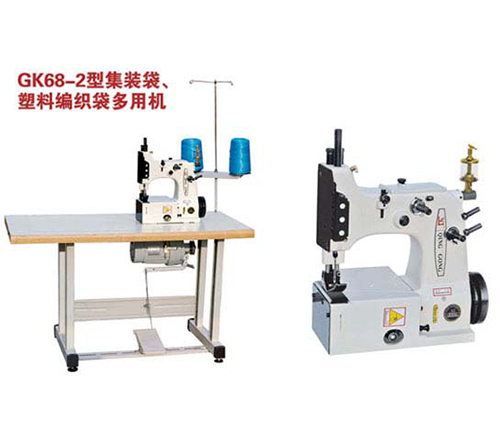

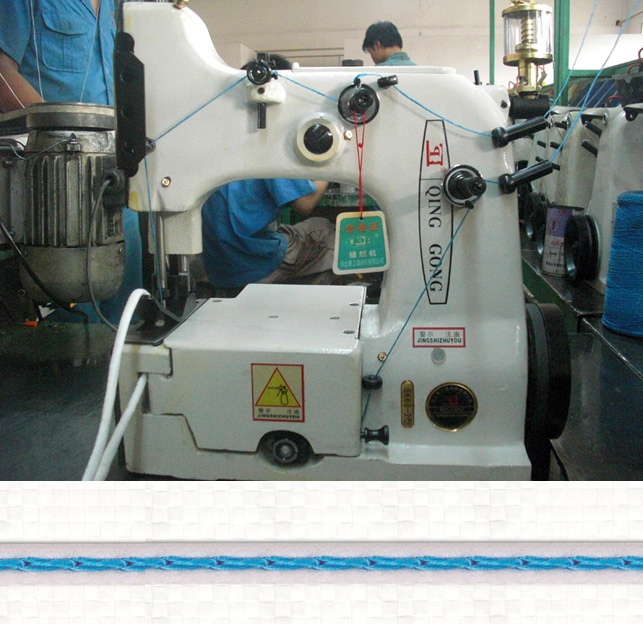

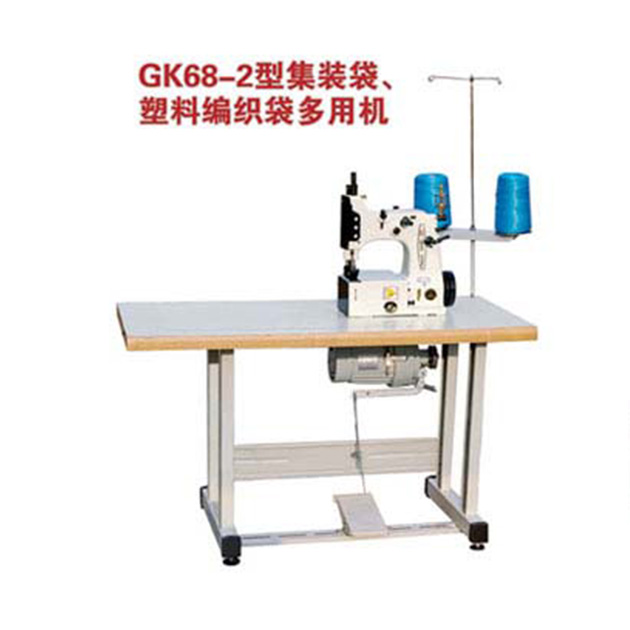

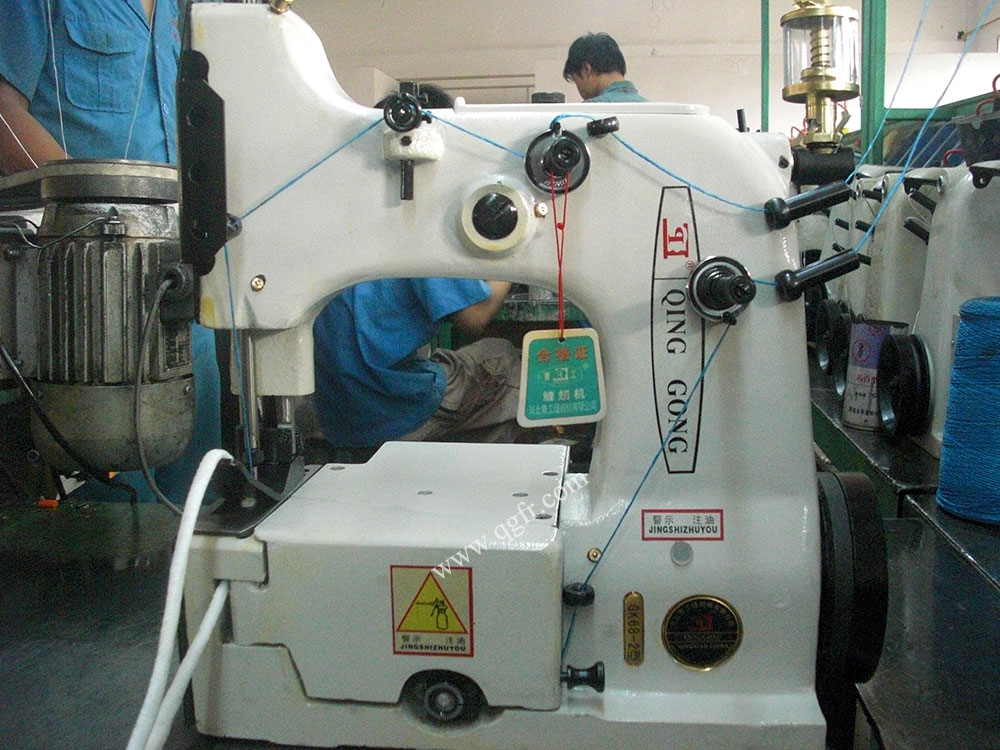

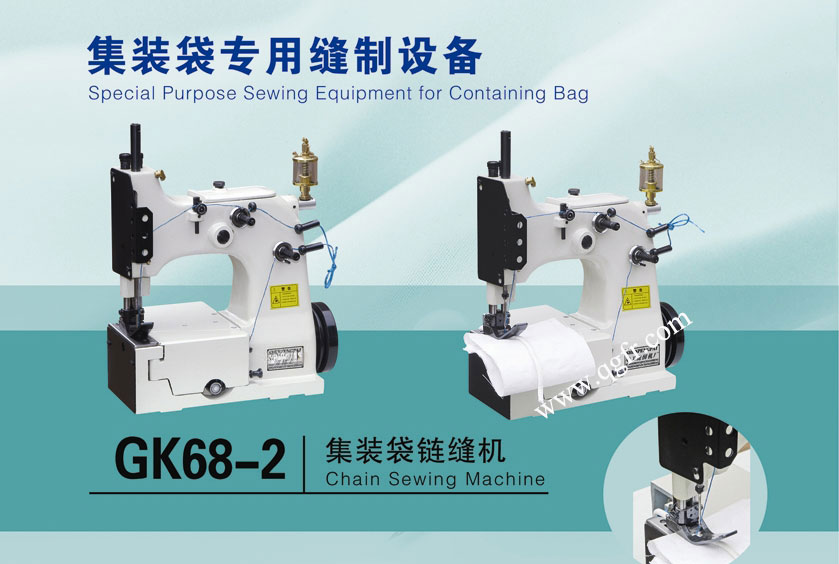

GK68-2 bag sewing machine
product description
GK68-2 bag sewing machine is double locked stitch machine with built-in thread chain cutter, plain feed and alternating upper feed left of the needle. It is ideal for seaming and hemming light to middle weight material such as a jute or PP/PE woven cloth bag. This machine is designed for manufacturing HDPE/PE woven sacks and jumbo bags. Simple working of the GK68-2 allows the operator to achieve faster and better production with less downtime.
GK68-2-0: Without guides for filler cord from the top or from below for sealing the needle punctures of the left needle.
GK68-2-1: With guides for filler cord from the top for sealing the needle punctures of the left needle.
GK68-2-2: With guides for filler cord from below for sealing the needle punctures of the left needle.

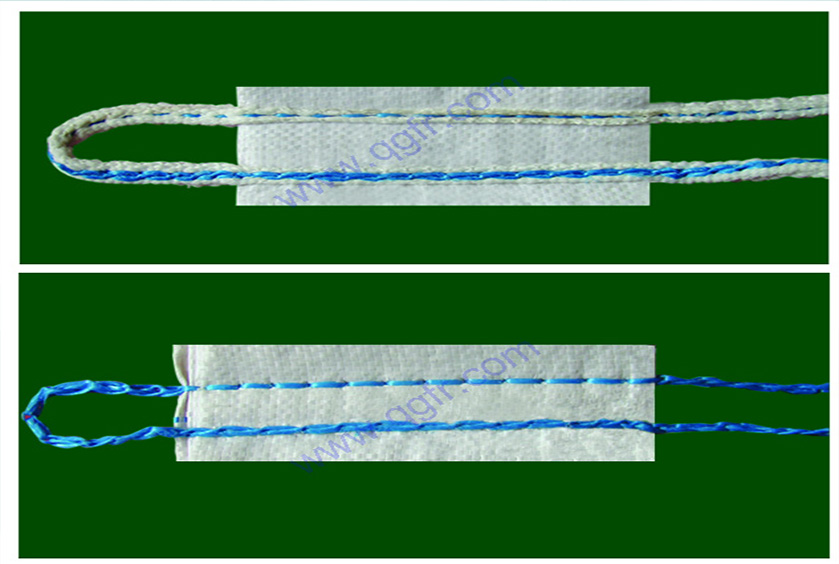

GK68-2-3: With guides for filler cord from the top and below for sealing the needle punctures of the left needle.
- Max.Sewing Speed: 2000RPM
- Stitch type: 401
- Needle Stitch Range: 6.5～11mm
- Max.Sewing Thickness: 10mm
- Needle Type: 80800×250#
- Needle Specifications: 20S/6 polyster thread or 21S/3×3 polyvinyl alcohol staple fibre or plastic woven silk thread.
- Motor Power: 370w
- Weight: 32kg
Technical Parameters
| 2000r.p.m. | |
| Presser lift | 15mm |
| Stitch length | 8-15mm |
| Needle type | 80800×300#-400# |
| Motor | 550 (W) |
| Net weight | 30kg |
